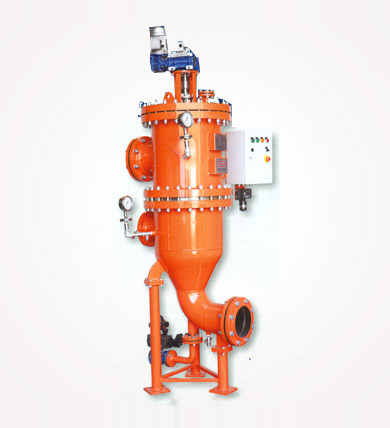

Auto Backwash Filter
Features
- Process Water Filtration - To remove suspended impurities from river water / process water.
- Side stream filter for cooling towers - To filter cooling water used in cooling towers to avoid clogging of the heat exchangers.
- Municipal water filtration
- Power Plants - To separate scale from water cooling generators.
- Steel Industry - To protect pumps & nozzles.
- Paper Industry - To protect clogging of paper machine nozzles.
- Chemical Plants, Food Industry - To filter process water.
- Machine Tools - To filter lubricating oils to reuse again.
Installation of PRVC -Auto Back Wash Filter
PRVC-16 in GRP for Sea water filtration
Technical Specifications - PRVC
| Model | Connection Inlet/Outlet | Connection Back Flush Line | Filtration Area M2 | Flow Rate Range 100-1000m M3/Hr |
| PRVC - 02 | DN 50 | DN 25 | 0.24 | 28 - 116 |
| PRVC - 04 | DN 100 | DN 40 | 0.40 | 46 - 190 |
| PRVC - 06 | DN 150 | DN 40 | 0.65 | 63 - 315 |
| PRVC - 08 | DN 200 | DN 50 | 0.806 | 94 - 390 |
| PRVC - 12 | DN 300 | DN 65 | 1.93 | 225 - 938 |
| PRVC - 16 | DN 400 | DN 65 | 3.30 | 385 - 1600 |
| PRVC - 20 | DN 500 | DN 80 | 5.78 | 675 - 2800 |
| PRVC - 24 | DN 600 | DN 100 | 8.67 | 1010 - 4210 |
| PRVC - 28 | DN 700 | DN 100 | 11.10 | 1295 - 5395 |
| PRVC - 36 | DN 900 | DN 150 | 18.00 | 2100 - 8500 |
